water tape

Static & drawDown Levels

water tape2

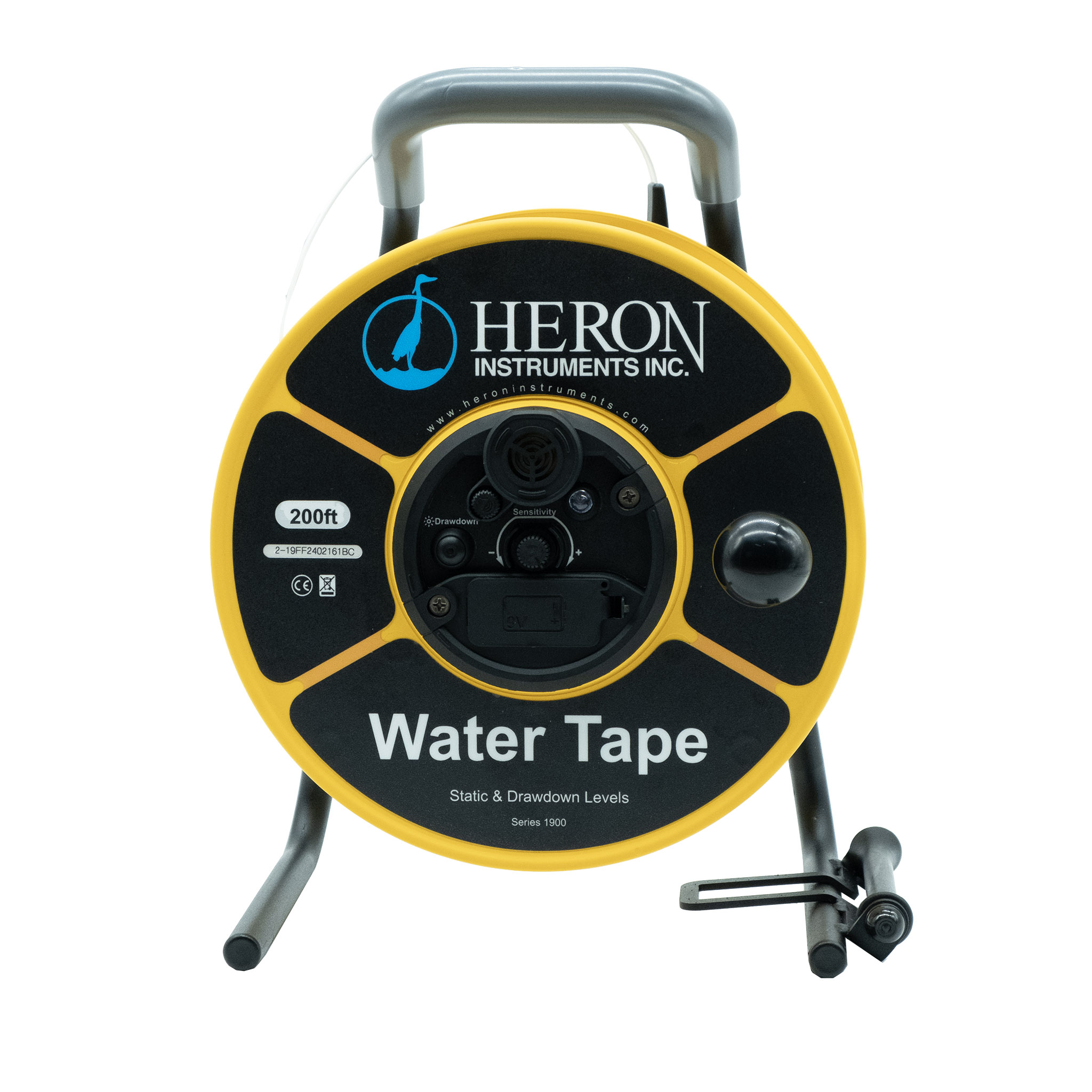

The water tape2 water level meter is made for drillers, consultants and hydrogeologists that are looking for an economic water level meter that does not lack in quality. The water tape2 provides accurate water measurements without going over budget.

The Heron water tape2, an economical water level meter, can be used for measuring both static and drawDown levels in open bodies of water, wells, boreholes and standpipes. This low cost unit with DUAL FUNCTION capability is ideal for every project and budget.

The water tape2 manufactured with the white polyethylene tape, reinforced with Kevlar is available in both metric and engineering scale. Unlike some other white tape units, the water tape2 comes with a fully pressure rated probe* and carry bag.

Request Quote:

Download Manual Download Tip Sheet Watch Video Download CE Certification
  • Electronic Module (IP65) – change mode for static and drawDown levels, removable for easy cleaning and servicing. Circuits and components are potted to protect from moisture and dust intrusion
  • Sensitivity Switch – to adjust for false signals from cascading water
  • Link – to prevent damage to the tape, the probe is sacrificed at the link area if snagged in the well
  • Probe (IP68) – 5/8” (1.59cm) fully pressure/depth rated*, no holes or recesses for contaminate build up
  • Tape – polyethylene, reinforced with Kevlar – markings in metric (mm) or engineering scale (1/100’)

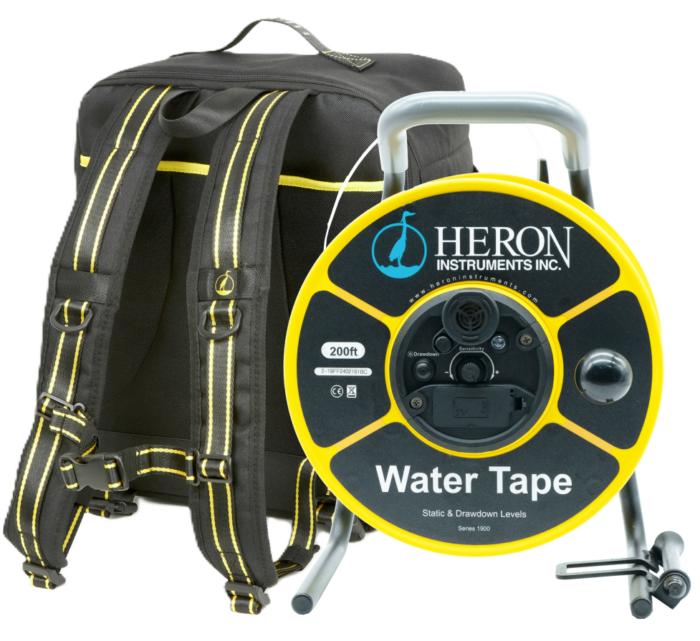

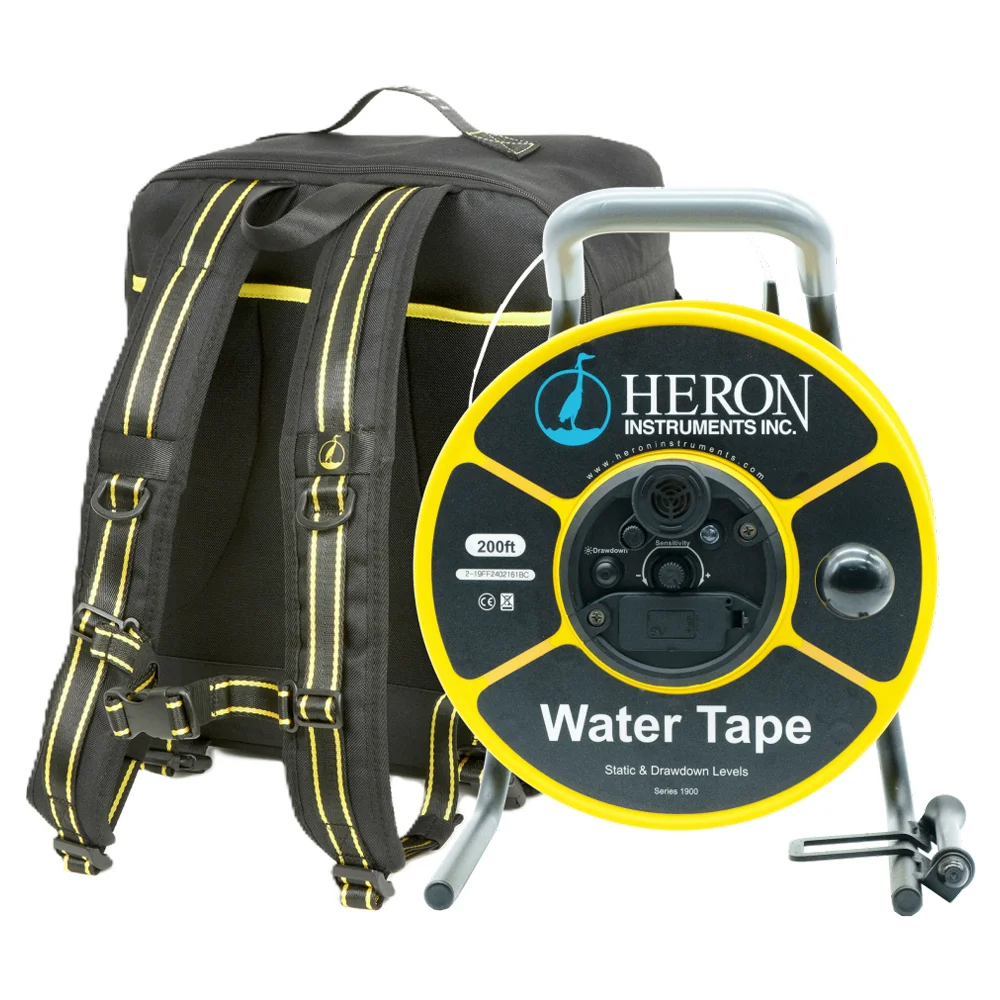

  • Carry Bag – to protect your water level meter from the elements
  • Hanger – built in, to support the meter at the well head, allows for hands free deploymenthands free water level measuring
  • Tape Guide – built in, to protect the tape from sharp edges on the well casing
  • Vinyl Holding Grip – molded to the frame, ergonomic easy grip
  • Winding Handle – custom made for easy rewinding with gloved hands
*Temporarily Submersible
NOTE:
It is the Distributor’s and/or User's responsibility to ensure chemical, temperature, radiative, and shock compatibility with their site(s) before, during and after deployments. Not doing so will void any and all warranties.
Download the complete water tape2 specifications, including: Reel Assembly / Tape / Probe / Electronic PanelDownload File
