dipper-Tag

dipper-tagTag Line Plus

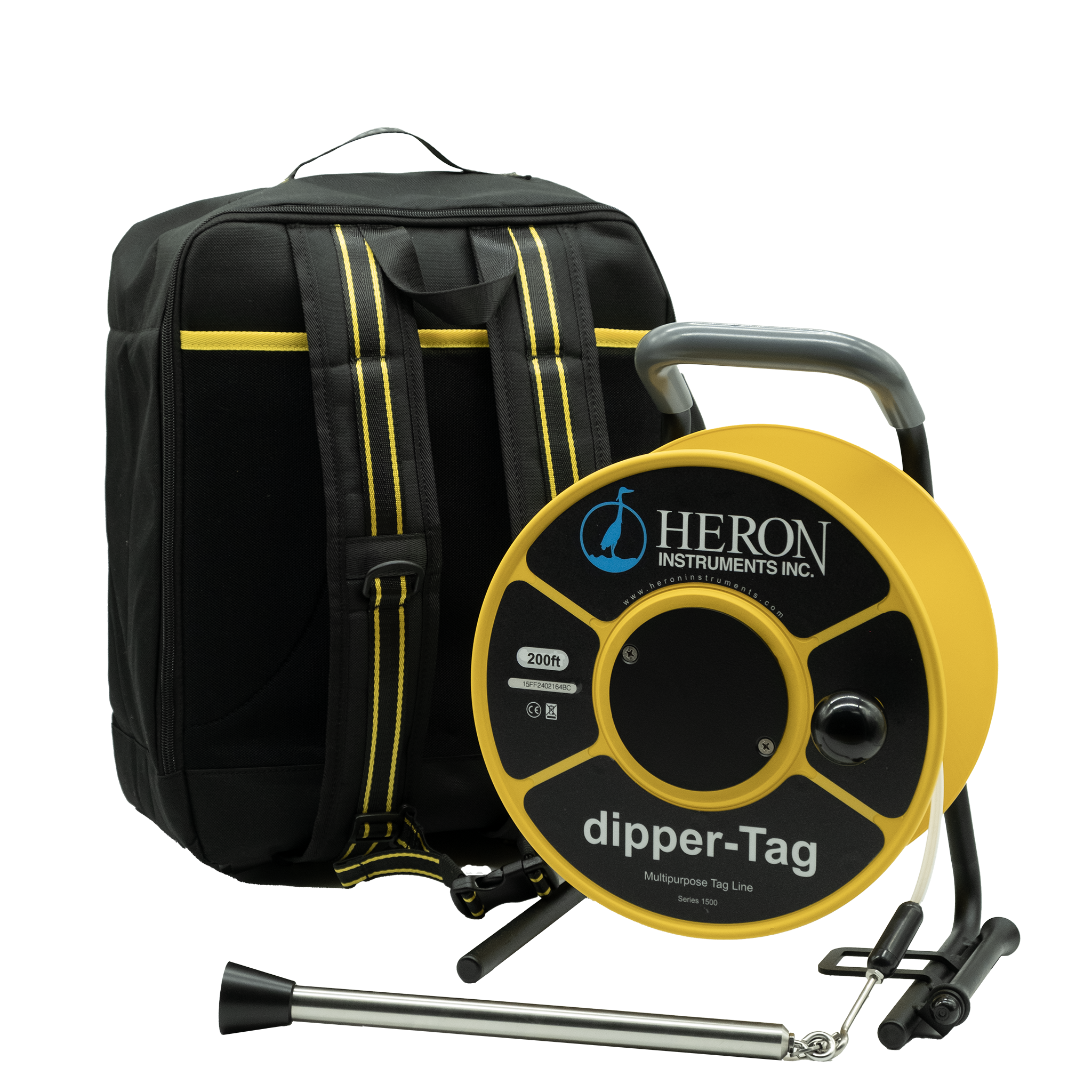

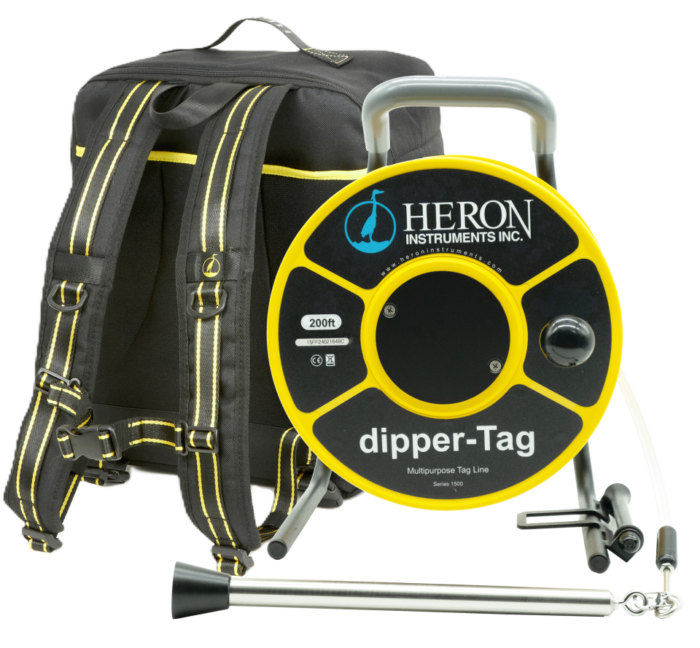

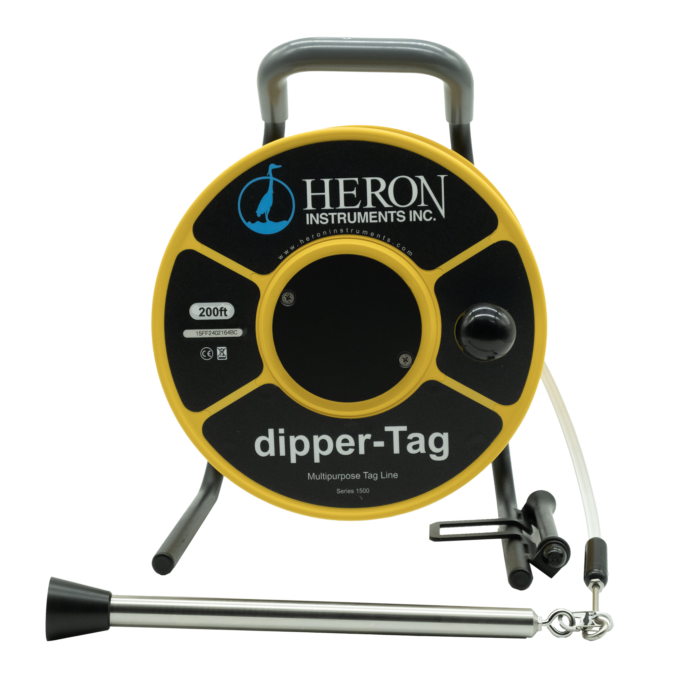

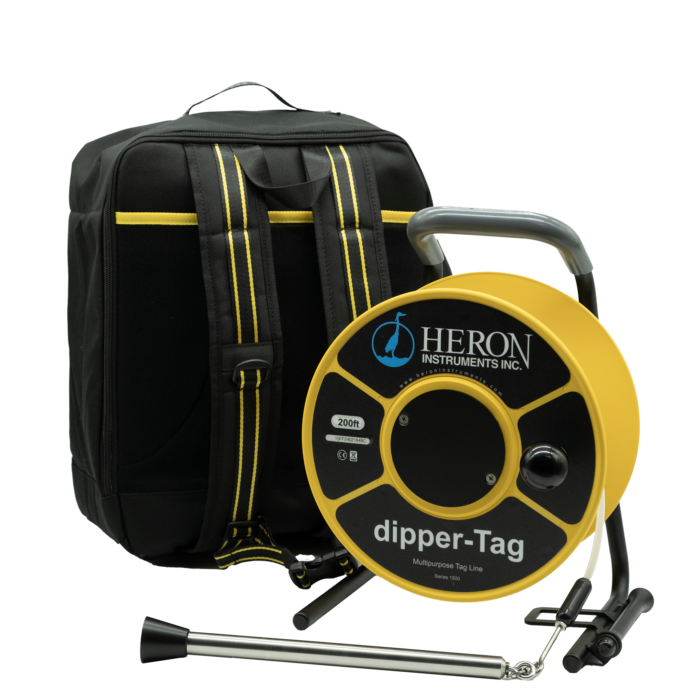

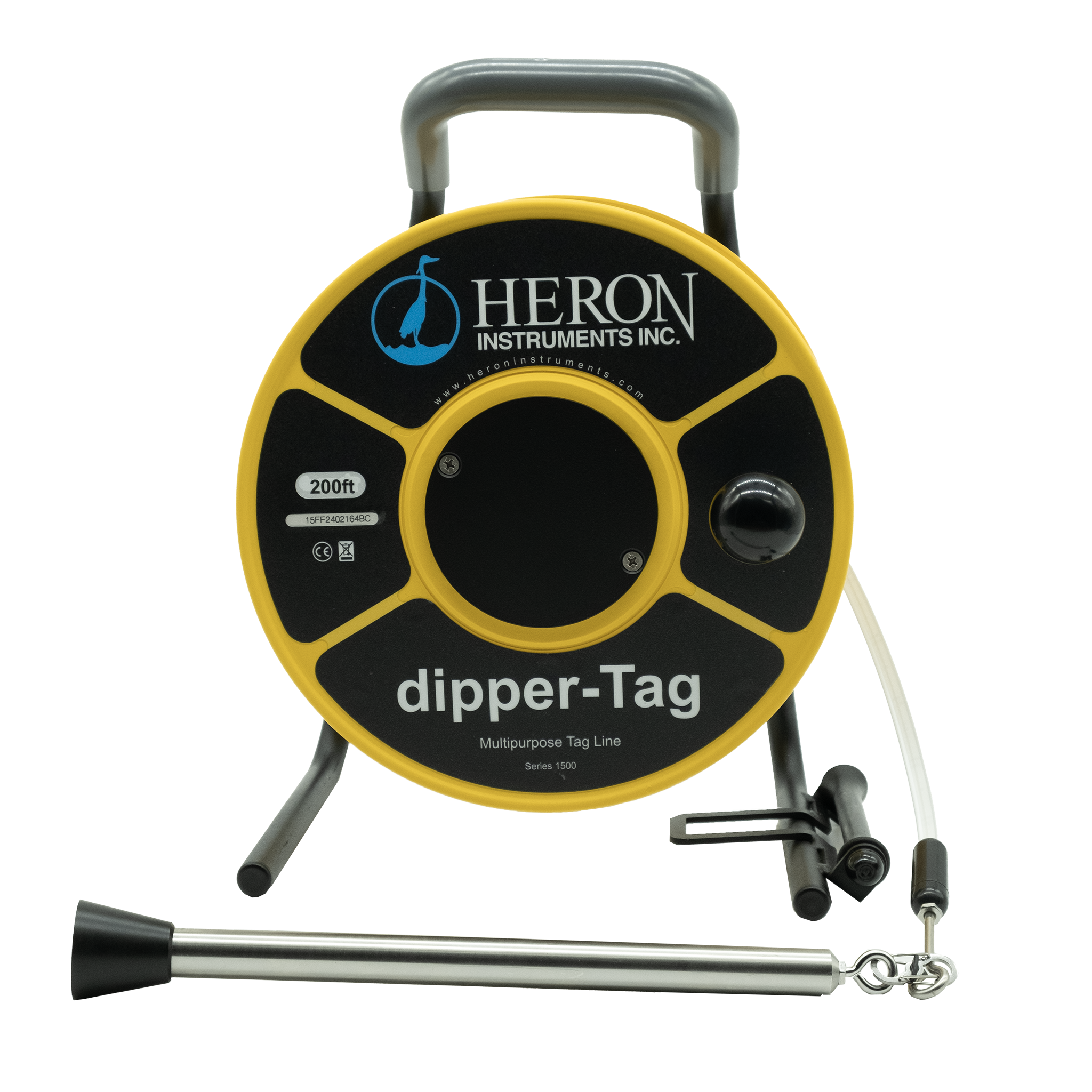

The dipper-Tag water level meter is designed for hydrogeologists who require a tape to attach a bailer to, in order to do water quality sampling. It can also be used by well drillers when performing well installation or well maintenance.

The economical dipper-Tag is a multi-purpose unit designed for use when installing or monitoring wells. The 316 grade s/s weighted plopper that comes with the dipper-Tag can be used for measuring to the bottom of a well, or the depth to the top of a bentonite layer or backfill sand. The plopper can also be used to measure to the top of the water level acoustically

The spring release clip allows the user to exchange the plopper to other available accessories such as our dipperLogs to measure water levels and temperature for short term analysis. The dipper-Tag can also be used with third party accessories, i.e bailers for water sampling.

In order to keep this unit cost effective it is only available in one tape length, 500’ or 150m.

  • Spring Release Clip – forged stainless and chrome plated
  • Plopper/Weight– 316 grade stainless steel, 750 grams
  • Tape – polyethylene, reinforced with Kevlar – markings in metric (mm) or engineering scale (1/100’)
  • Carry Bag – to protect your water level meter from the elements
  • Hanger – built in, to support the meter at the well head, allows for hands free deploymenthands free water level measuring
  • Tape Guide – built in, to protect the tape from sharp edges on the well casing
  • Vinyl Holding Grip – molded to the frame, ergonomic easy grip
  • Winding Handle – custom made for easy rewinding with gloved hands
Reel Weight2.4Kg (5.29lbs)
Height356mm (14”)
Width279mm (11”)
Depth241mm (9.5”)
Weight Weight750g (1.65lbs)
Weight Length116.84mm (4.6”)
Weight Diameter25.4mm (1”)
Depth Rating FullLength of Tape
Wetted MaterialsStainless Steel, ABS
TapePolyethylene
Tape MarkingsEngineering Scale or Metric
Limited Warranty3 Years
